Brand Name : Chitherm
Model Number : MBF20-11N
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : Customized
Supply Ability : Customized
Delivery Time : Customized
Packaging Details : Customized
Range of Applications : Industrial
Type : Electric Holding Furnace
Usage : Ceramic Sintering
Fuel : Electric
Atmosphere : Nitrogen/Air
Effective Chamber Dimensions : 330*200*330mm(W*H*D)
Transport Package : Wooden Packaging
Specification : 1300*1900*1160mm(W*H*D)
Trademark : Chitherm
Origin : China
HS Code : 8514101000
Production Capacity : 50 Sets/Year
| Rated Temp. | 1000ºC |
| Max Temp. | 1100ºC |
| Effective Dimensions | 330 × 200 × 330mm(W×H×D) |
| Heating Method | SiC Rods |
| Process Atmosphere | Nitrogen |
| Temperature Control Stability | ±1ºC, with PID parameter self-tuning function |
| Temperature Uniformity | better than ±5ºC (insulation 2 hours at 1000ºC test) |
| Thermocouple | Type N |
| Temperature control points | 3 points |
| Temperature measurement points | 1 point |
| Process Steps | 4×16 steps |
| Oxygen Content | ≤ 20ppm+gas supply oxygen content |
| Exhaust | One exhaust port with manual adjustment |
| Max Heating Power | 12kW |
| Insulation Power | ≤ 5kW |
| Surface Temperature Rise | ≤ 35ºC |
| 3. Delivery List | |||
| Item | Note | QTY | |
| Basic Compositions | Furnace | 1 PC | |
| Certificates of Inspection | Furnace and major purchased components | 1 Set | |
| Technical Documents | Furnace specifications, technical documents of major purchased components, etc | 1 Set | |
| Key Parts | Heating Elements | SiC Rods | 1 Set |
| Thermocouple | WATLOW/THERMOWAY, Type N | 1 PC | |
| Temperature Controller | Azbil | 1 Set | |
| Monitor | Proface touch screen | 1 Set | |
| Spares | SSR | 1 PC | |

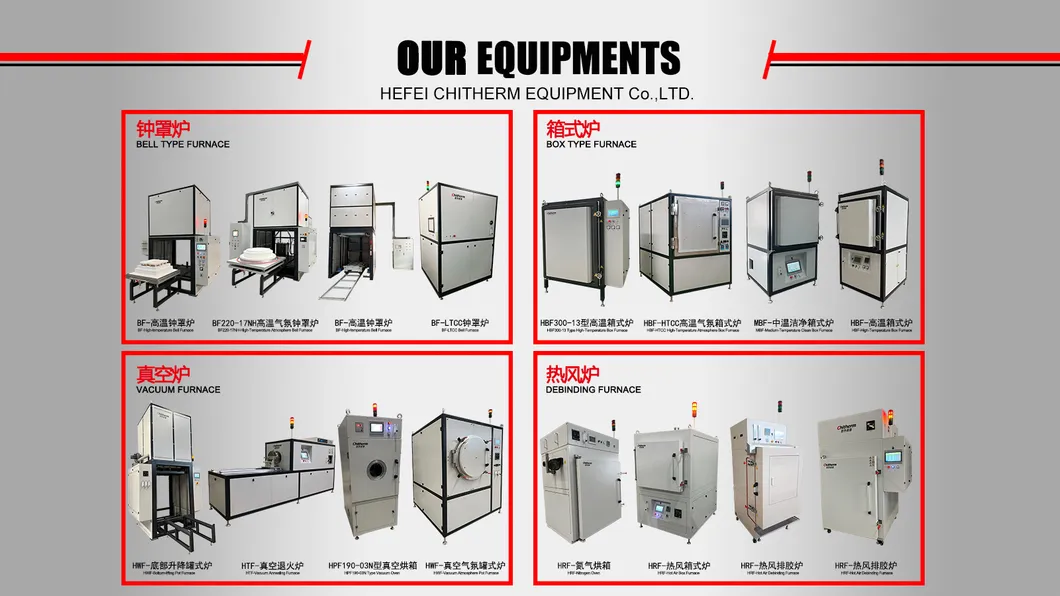

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.



1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
|
|
